How to Read Sewing Patterns: A Beginner's Guide

Overview

A sewing pattern packs a surprising amount of information into a small space, and it can feel overwhelming the first few times you open one. Once you know what each section is telling you, though, reading a pattern becomes a quick, repeatable process rather than a source of confusion.

This guide covers commercial paper patterns and PDF patterns, since both use largely the same conventions for envelope or cover information, pattern markings, and layout diagrams. Specific pattern companies vary slightly in formatting, but the core symbols and terms described here are broadly consistent across the industry.

Read through your whole pattern once, cover to cutting instructions, before cutting any fabric. This first read-through catches sizing questions or unfamiliar terms while you still have time to look them up.

Reading the envelope or first page

A pattern's envelope (or first page, for a PDF) typically lists the finished garment's included views or variations, a size range, recommended fabric types, and the yardage needed for each size and view. Recommended fabric types matter more than they might seem to -- a pattern designed for a woven fabric generally won't fit or drape correctly in a knit, and vice versa.

Look for a notions list, which itemizes anything beyond fabric you'll need -- specific zipper lengths, button counts, interfacing amounts, or elastic widths. Gathering these before you start cutting avoids a mid-project trip to find a missing item.

Many patterns also list finished garment measurements somewhere on the envelope or an early page, separate from body measurements. This is the actual finished size of the garment, including built-in ease (extra room beyond your body measurements), and it's often more useful for choosing a size than your body measurements alone.

Choosing your size

Pattern sizing is not the same as ready-to-wear clothing sizing, and this trips up a lot of beginners. Always measure yourself and compare against the pattern's own size chart (usually printed on the envelope or an early page) rather than assuming your usual clothing size applies.

Take your bust or chest, waist, and hip measurements with a soft tape measure, following your specific pattern's measuring instructions, since exact measurement points can vary slightly between pattern companies. Compare each measurement to the size chart separately -- it's common to fall into different pattern sizes at the bust, waist, and hip.

When your measurements fall between sizes, or across multiple sizes at different points, many patterns include grading (blending) instructions between the printed cutting lines. This is normal and doesn't mean the pattern is a poor fit for you -- see our beginner projects hub for simpler, less fitted projects if grading between sizes feels intimidating on a first pattern.

Pattern piece markings

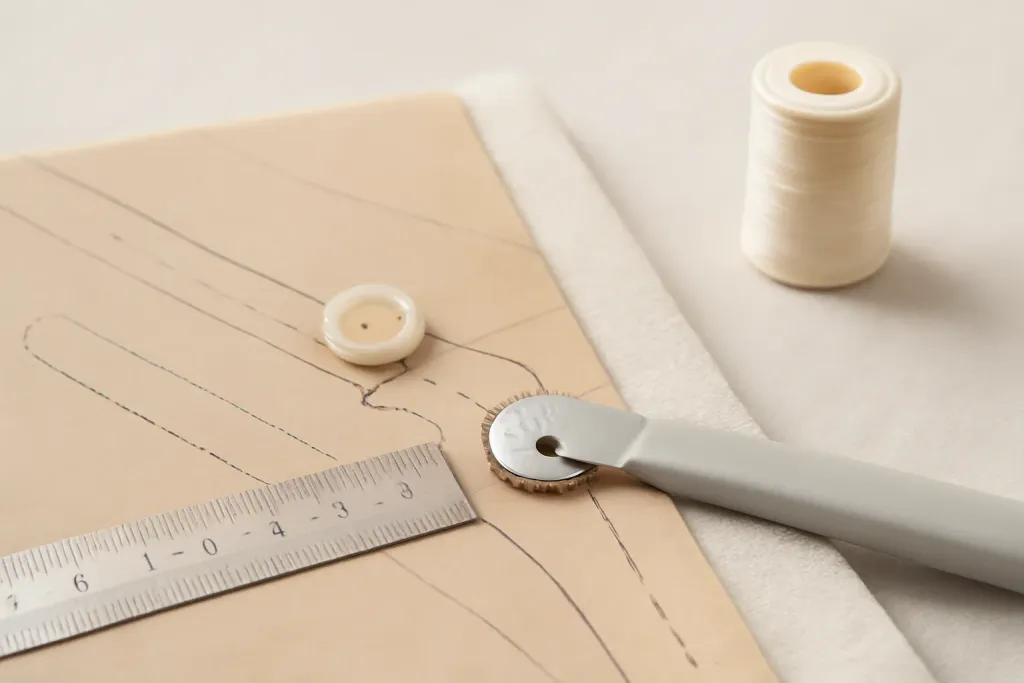

Each pattern piece is covered in small symbols and marks, and learning a handful of the most common ones goes a long way. A grainline is usually a long arrow printed on the piece, showing how to align the pattern with your fabric's straight grain (the direction threads run) when you lay it out.

Notches are small triangles or marks along a pattern piece's cut edge, used to match pieces together correctly during construction -- for example, matching a sleeve notch to a bodice notch. Cutting notches outward (as small triangular tabs) rather than snipping inward keeps your seam allowance intact.

A fold line, often marked with a bracket or an arrow pointing to a line with "place on fold" text, tells you to position that edge of the pattern piece directly on a folded edge of fabric rather than cutting it as a separate seam. Dots or small circles usually mark points like dart tips, pocket placement, or where two pieces should align during construction.

Layout and cutting diagrams

Cutting layout diagrams show how to arrange all the pattern pieces on your fabric before cutting, usually with a separate diagram for each size range and fabric width, since these change how efficiently pieces fit together. Find the diagram matching your fabric width and view before laying anything out.

Follow the diagram's fold instructions carefully -- some layouts call for fabric folded in half lengthwise, others for a single flat layer, and mixing these up can waste fabric or produce mismatched pieces. Pin or weight pattern pieces onto your fabric following the diagram's placement before cutting any single piece.

If your fabric has a directional print, nap (like corduroy or velvet), or a large motif you want to center, check the diagram and instructions for guidance on "with nap" layouts, which use more fabric but keep the direction or motif consistent across all pieces.

Common terms explained

Seam allowance is the distance between your stitching line and the fabric's cut edge, and different pattern companies default to different amounts (commonly 5/8 inch for commercial patterns, though this varies). Check your specific pattern's instructions rather than assuming a standard.

Ease refers to the extra room built into a garment beyond exact body measurements, allowing for movement and comfort. Wearing ease is the minimum extra room needed to move comfortably; design ease is additional room added for a specific silhouette, like a loose-fitting top.

Interfacing is a separate material fused or sewn to certain pattern pieces (like collars, cuffs, or waistbands) to add structure and stability. Patterns typically specify which pieces need interfacing and roughly what weight to use, though exact interfacing choice often comes down to your specific fabric.

Digital vs paper patterns

PDF patterns are typically sold as a downloadable file you print at home on standard paper, then tape together following a layout guide -- often called an "assembly diagram." Pages usually include small alignment marks near the edges to help you match adjoining sheets accurately before taping.

Printer settings matter more than beginners often expect: most PDF patterns include a small test square on the first page, and you should confirm your printer is set to "actual size" or "100%" (not "fit to page") and then measure that test square with a ruler before printing the rest of the pattern, since a scaling error will throw off every measurement in the pattern.

Paper (commercial) patterns arrive pre-printed at full size on large tissue-like sheets, cut directly from the printed lines rather than assembled from smaller pages. Both formats use the same core markings and terms described above, so the skills in this guide apply to either one once you're past the initial printing or unfolding step.

Some PDF patterns also offer a copy-shop or "projector" file format alongside the standard print-at-home version, intended for large-format printing or pattern-projection setups. These are optional conveniences rather than a different pattern, and beginners can safely ignore them until a standard print-at-home file starts to feel limiting.

Whichever format you're working with, keep the original file or envelope somewhere you can find it again -- you'll likely refer back to sizing notes, fabric requirements, or a specific marking's meaning more than once while a project is in progress, especially the first few times you use a new pattern company.

Final thoughts

Reading a pattern gets faster with practice, and the symbols and terms covered here appear consistently enough across most commercial and PDF patterns that they transfer well from one pattern to the next. Take the time to read fully through a new pattern before cutting, even once you're experienced.

Once you're comfortable reading a pattern, our beginner sewing projects guide includes original, simpler projects to practice on, and our fabrics and patterns hub covers fabric prep before you cut.
